CHAPMAN FM120 / FM150 PRO FLAIL MOWER

EXCEPTIONALLY TOUGH & HEAVY DUTY - supplied by WhateverWheels.



APPLY FOR FINANCE


WhateverWheels are the North West's Official Chapman Machinery dealer and are happy to introduce the Chapman FM120 & FM150 PRO Flail Mower!

The FM PRO enters new territory in the ATV flail mower market for extreme power and reliability while maintaining better fuel efficiency versus traditional carburetor models.

Designed for the full range of topping and mowing tasks, from thick dense rushes to fine topping of parkland, the FM series Flail Mowers can tackle anything thrown at them.

  • Powerful 23hp Honda Petrol Engine
  • Electronic Fuel Injection
  • Heavy duty construction throughout
  • Unique double helix flail rotor
  • Large diameter tyres for smooth travel
  • Automatic belt tension system
  • Forged Hammer Flails


Industry Leading Performance
The FM PRO utilises industry-leading Fuel Injected 23hp Honda Fuel Injected iGX700 V-Twin Engines, which offer unparalleled power and performance in their class.

The FM PRO models are fitted with forged hammer flails as standard, proven to cope with the most demanding growth, with a cleaner, more reliable cut.

When reliability meets intelligence
The Honda iGX700 offers excellent fuel efficiency due to the electronic control system which continually monitors and adjusts the engine’s air to fuel ratio according to operating conditions and engine load while maintaining optimal performance.

This results in excellent fuel efficiency and low emissions ??" so good, that in product trials the fuel efficiency was typically 10-12% better than the previous model.

Lower fuel consumption & better efficiency
The FM PRO is paired alongside with Honda's legendary quality and reliability, the upgraded engines minimise starting issues in a range of conditions and are less susceptible to poor quality fuel, making them even more efficient.

This means lower fuel consumption, less maintenance costs and less downtime ??" important factors when choosing which machine is right for you making it perfect for commercial and heavy duty users.

Heavy duty & Robust
The FM PRO range are fitted as standard with a centrifugal clutch, allowing for safe & efficient operation from the towing machine.

The centrifugal clutch gives automatic drive engagement and disengagement, and combined with the automatic tensioning assembly reduces maintenance by compensating for belt wear and belt loading. Heavy-duty 'bx' type drive belts last longer and are more efficient than smaller units used on competing machines.

OPTIONS
  • Front Break Bar - Tubular fender bar to protect wheels and feed tall material (eg. bracken, reeds) into the mower smoothly)
  • Cutter Bar - Fixed cutter bar within the deck to increase mulching and reduce chop size, for faster cut material de-composition.

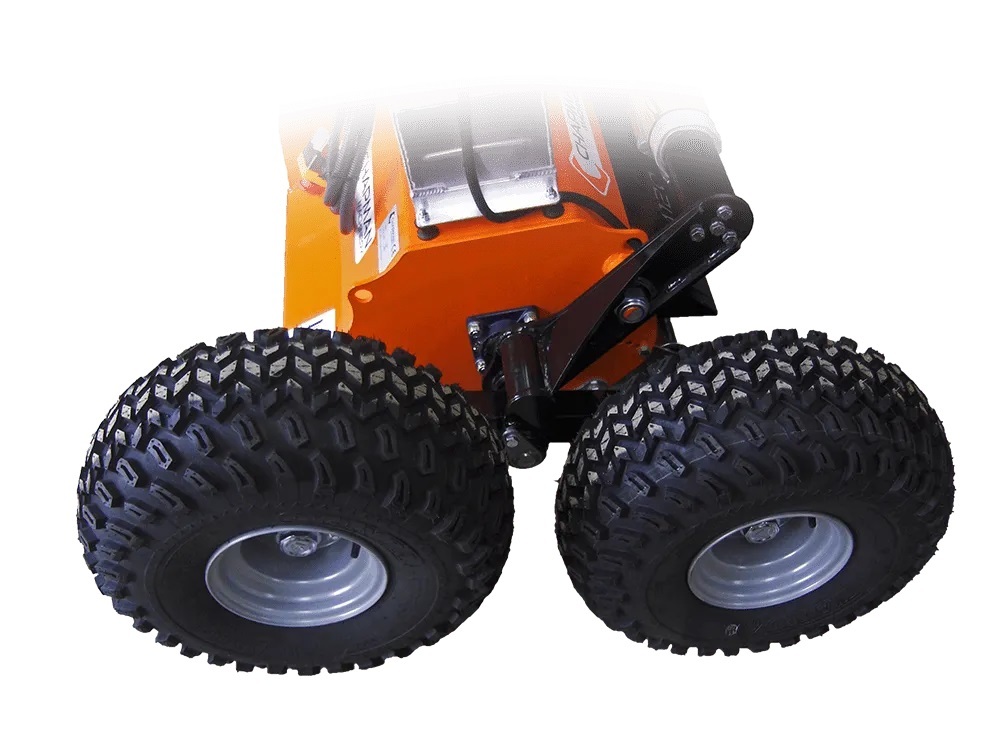

  • Twin Bogie Axle - Replaces standard axle assembly with rocking beam axle with two wheels (per side), for smoother travel over rough terrain. Can only be used with the wheels to the side, cannot be used with wheels trailing.
  • Engine Centre Mount - Engine is centrally mounted on the deck to provide 50/50 weight distribution for improved safety on steep terrain.
    * Only available on PRO models


Features Designed for the full range of topping and mowing tasks, from thick dense rushes to fine topping of parkland, the FM series Flail Mowers can tackle anything thrown at them.

  • Powerful 23hp Honda Petrol Engine
  • Electronic Fuel Injection
  • Heavy duty construction throughout
  • Unique double helix flail rotor
  • Large diameter tyres for smooth travel
  • Automatic belt tension system
  • Forged Hammer Flails

Specification CHAPMAN FM120 PRO
Weight: 310kg
Cutting Width: 1.2m
Cutting Height: 25-225mm
Rotor RPM: 2400rpm
Deck Steel Thickness: 5mm cover, 8mm side plates
Number of Hammer Flails: 22
Engine Power: 23hp Honda iGX700 EFI V Twin w/ Electric start
Tyre Size: 22x11x8?
Fuel Tank Capacity: 10 Litre
Belt Size: 2 x BX41 Cogged Belts w/ automatic tensioning system
Rotor Balancing: G6.3 Dynamic balanced

CHAPMAN FM150 PRO
Weight: 325kg
Cutting Width: 1.5m
Cutting Height: 25-225mm
Rotor RPM: 2400rpm
Deck Steel Thickness: 5mm cover, 8mm side plates
Number of Hammer Flails: 26
Engine Power: 23hp Honda iGX700 EFI V Twin w/ Electric start
Tyre Size: 22x11x8?
Fuel Tank Capacity: 10 Litre
Belt Size: 2 x BX41 Cogged Belts w/ automatic tensioning system
Rotor Balancing: G6.3 Dynamic balanced
Options AVAILABLE IN 120CM OR 150CM
  • Front Break Bar - Tubular fender bar to protect wheels and feed tall material (eg. bracken, reeds) into the mower smoothly)
  • Cutter Bar - Fixed cutter bar within the deck to increase mulching and reduce chop size, for faster cut material de-composition.
  • Twin Bogie Axle - Replaces standard axle assembly with rocking beam axle with two wheels (per side), for smoother travel over rough terrain. Can only be used with the wheels to the side, cannot be used with wheels trailing.
  • Engine Centre Mount - Engine is centrally mounted on the deck to provide 50/50 weight distribution for improved safety on steep terrain.
    * Only available on PRO models
  • Forged Hammer Flails - Fitted in place of standard steel blades, the forged hammer flails are considerably heavier, harder and give a better finish when cutting tough material eg. reeds, bracken. Higher rotational mass improves mower performance when encountering heavy clumps of material.
