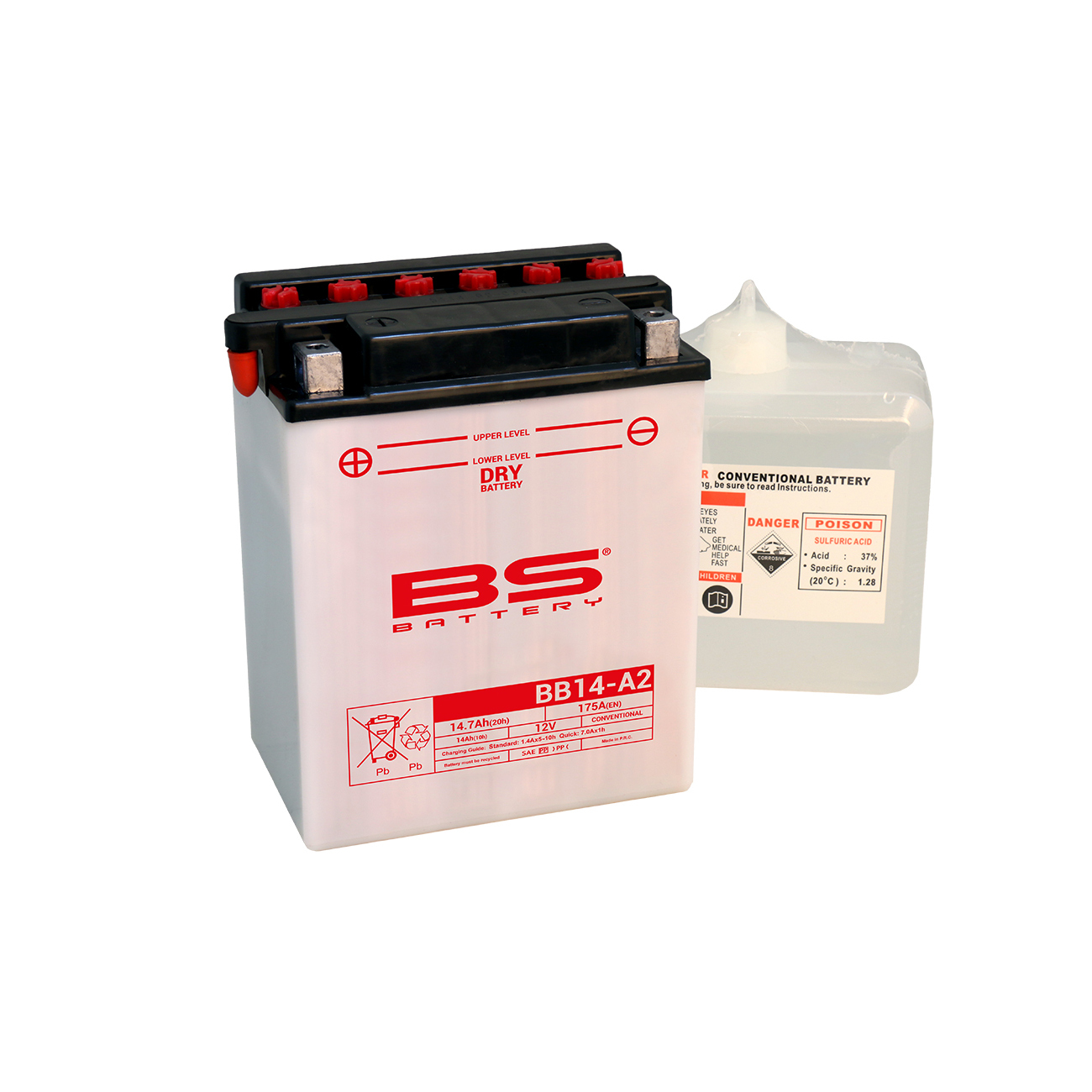

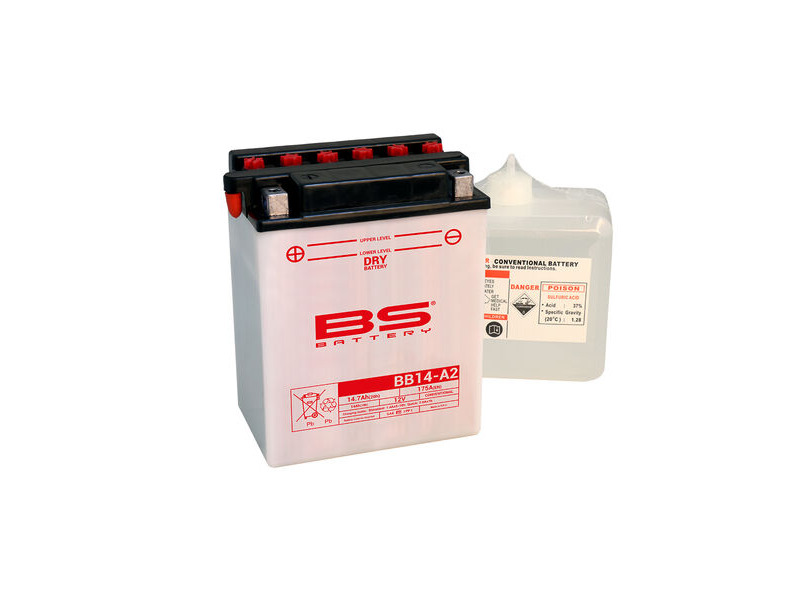

BS BATTERIES BB14-A2 (12N14-4A) (DC) Combi-Pack Dry Battery

• DRY-charged technology
• for initial filling
• Refilled with water if necessary
• No need to be recharged while stocked (if not activated)

BS Battery

With more than 400 battery types covering a wide range of powersport applications, its 6 subsidiaries around the world and its 5 production bases, BS BATTERY has become within a few years, one of the largest and most innovative powersport battery manufacturers, present in both OEM and OES fields.

Today, distributed in more than 80 countries, BS BATTERY is a reliable partner of the major distribution players and vehicle manufacturers.

---

Position:

This battery should never be fitted on its side. It is only suitable for vertical fitment. Use a factory sealed or lithium type for batteries that sit at angles.

Initial charging:

Most problems with batteries today are due to improper initial activation. Newly activated batteries should always be charged before you install them into any motorcycle, otherwise they will lose at least 20% of their capacity. This will definitely result in a much shorter service life or other battery problems. Fill the battery to the indicated level or until the MF combi pack is empty. Charge the battery for three to five hours at the current equivalent of 1/10 of its rated capacity to get a full charge.
Failure caused by incorrect activation or charging is not a warranty issue. Further research shows that 95% of alleged problems occurring with batteries that have been in service for more than a couple of months and have been left standing without charge are caused by sulfation. This is a condition where a crystal like material forms on the lead plates. When this chemical reaction happens, it is impossible to restore a full charge and the battery has to be replaced. This is NOT caused by a faulty battery, it is a fault with maintenance. Please ensure batteries are kept charged on a suitable charger when not in use.

Note all measurements given are nominal and may vary by 1mm or so. For an exact measurement, please contact our sales office

Specially designed to offer good performance and reliability, this conventional battery is delivered with an acid pack, and must be activated before first use and has to be checked and maintained periodically. It must not be fitted at any angle other than vertical
Barcode: 3661451003339

BB14-A2 Battery (Dry range). This 12V 14Ah battery is a lead-acid flooded battery that must be filled before the first use, resulting in a much longer shelf life.
For box quantities please add multiples of 3.

Length:	134mm
Width:	89mm
Height:	166mm
CCA:	175
Capacity:	14
Polarity:	plus/minus
Type:	Dry
Voltage:	12v

Length:	134mm
Width:	89mm
Height:	166mm
CCA:	175
Capacity:	14
Polarity:	plus/minus
Type:	Dry
Voltage:	12v

Fitment Summary
Compatible with 81 models (yearly).

• Arctic Cat: CR 400ATV, H1 650 Auto, Mud Pro 650ATV, Utility 400 Automatic, Utility 650 4x4 H1, V Twin 650ATV
• Bimota: DB2 904SR
• Honda: XL600 LM-F, XL600 LM-G, XL600 LM-H
• Massey Ferguson: MF 2502wd, MF 2504wd, MF 3002wd, MF 3004wd, MF 4004wd, MF 5004wd
• Yamaha: YFM 250 Big Bear, YFM 350AN, YFM 350FA, YFM 350 FG FW GG, YFM 350FX, YFM 350 Raptor, YFM 350X
